Configurable ESSID in WLAN profile for Aruba Instant

By esupport posted Jul 31, 2015 10:52 AM


Q:

How to configure/modify ESSID name in Instant?



A:

In earlier Instant version, SSID name was same as SSID profile name and it wasn't a configurable variable. Instant version 4.2 allows WLAN administrator to change/modify ESSID name as needed with SSID profile name unchanged. By default ESSID name is set as SSID profile name.



CLI Configuration:



IAP (config) # wlan ssid-profile test
IAP (SSID Profile "test") # essid test-psk

Verification:

show network/show clients

IAP# show network
Networks
--------
Profile Name  ESSID     Clients  Type      Band  Authentication Method  Key Management  IP Assignment  Status   Zone  Coding
------------  -----     -------  ----      ----  ---------------------  --------------  -------------  ------   ----  ------
test          test-psk  1        employee  all   None                   WPA2-AES        Default VLAN   Enabled  -     Default


IAP# show clients
Client List
-----------
Name     IP Address   MAC Address        OS  ESSID     Access Point       Channel  Type  Role  IPv6 Address  Signal    Speed (mbps)
----     ----------   -----------        --  -----     ------------       -------  ----  ----  ------------  ------    ------------
root-PC  10.65.84.94  36:13:00:00:00:01      test-psk  94:b4:0f:ca:bc:2e  36+      AN    test  --            38(good)  240(good)

Number of Clients   :1

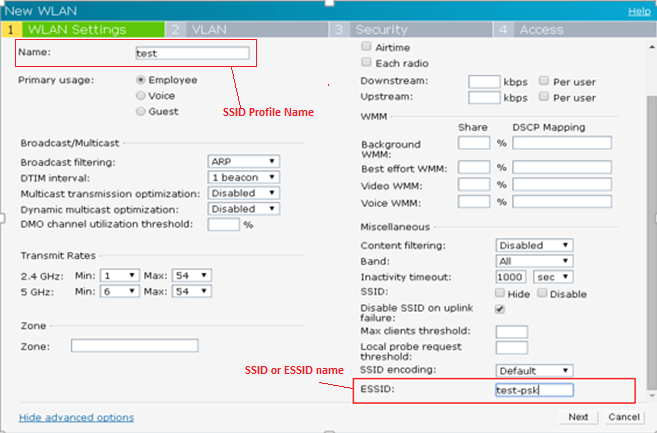

Web UI Configuration:

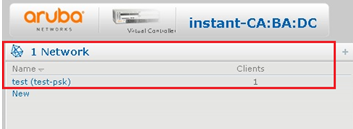

Verification:
