Why do we get the error message in central about "VC IP address, VLAN and gateway"?

By esupport posted Mar 07, 2016 04:00 PM


Q:

Why do we get the error message in central about "VC IP address, VLAN and gateway" as shown below?







A:

Why do we get the error message in central about "VC IP address, VLAN and gateway" as shown below?



The warning on UI about VC IP address, VLAN and gateway is due to “Dynamic radius proxy” field set as enabled but VC IP and other required fields are not set.

Its recommended to configure VC related fields when DRP (Dynamic radius proxy) is enabled.

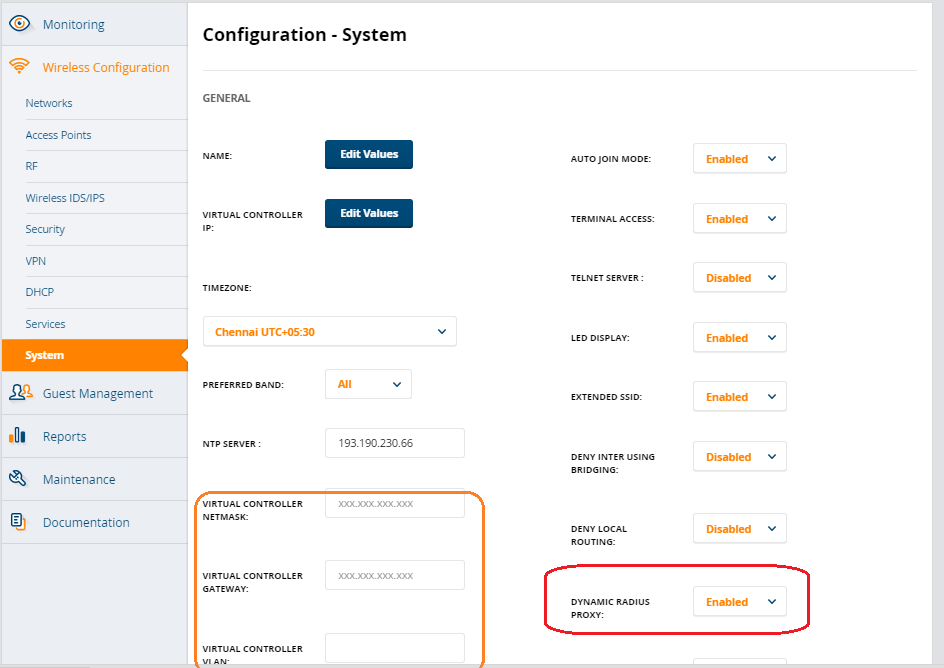

In the below screenshot DRP is enabled however VC fields are not set hence its throwing the warning message.



There two fix for this issue:



1. Disable DRP or

2. Configure VC fields with DRP enabled.
