Hi Florian, yeah exactly the meaning was that one: the HPE 7th Generation ProVision ASIC employed into Aruba 6300M Switch Series, is able to deliver 880 Gbps of (full duplex, non blocking) total throughput.
Original Message:
Sent: Dec 29, 2020 09:24 AM
From: Florian Baaske
Subject: 6300M system capacity , model capacity.
Hi,
just guessing here as well but from my point of view, all switches in one family have the same ASIC which is, in the case of the example above, capable of 880Gbps. But due to the port configuration, not all models are capable of using the available bandwidth. The calculation from @parnassus shows a great example of this.
just my 2cents
------------------------------
Florian Baaske
Original Message:
Sent: Dec 23, 2020 04:43 AM
From: Davide Poletto
Subject: 6300M system capacity , model capacity.

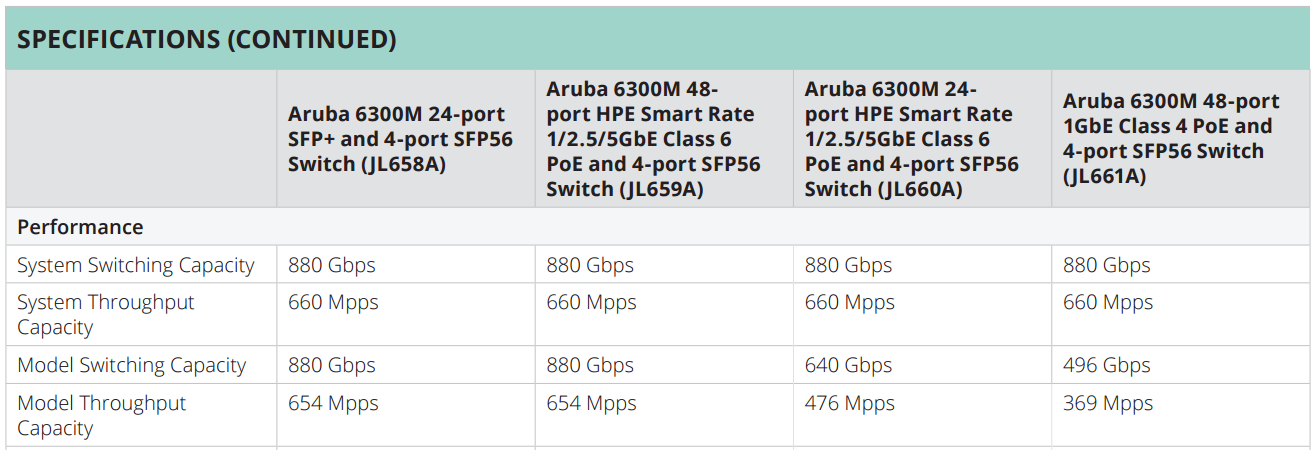

Hi, in my opinion that table is quite confusing.
Model Switching Capacity means that - for a particular model - its Switching Capacity is equal to the stated value (you see: 880 Gbps for JL658A and JL659A, 640 Gbps for JL660A and 496 Gbps for JL661A).
System Switching Capacity instead is only a way to state that the whole Aruba 6300M Switch Series (as a family) reaches that maximum value - 880 Gbps.
At least this is what I understood at first sight.
Example:
JL661A has 48 1Gbps ports + 4 50Gbps ports so: (48 x 1000 x 2 = 96 Gbps) + (4 x 50000 x 2 = 400 Gbps) = 496 Gbps
But Aruba states that the family (clearly considering other models) reaches 880 Gbps...this information is - IMHO - useless: I mean, I'm interested in understanding what Switching Capacity has a particular model, not the entire family generically.
------------------------------
Davide Poletto
Original Message:
Sent: Dec 22, 2020 01:54 AM
From: jongsu kim
Subject: 6300M system capacity , model capacity.
Hi guys
What is the difference between system switching Capacity and Model Switching Capacity?
------------------------------
jongsu kim
------------------------------
