Thanks Vincent, appreciate the help ... But it looks like its all working after I restarted everything today very strange, fail over works also but takes a couple of seconds guessing that because its virtual etc
Have included the outputs in case it helps anyone else or there is an error

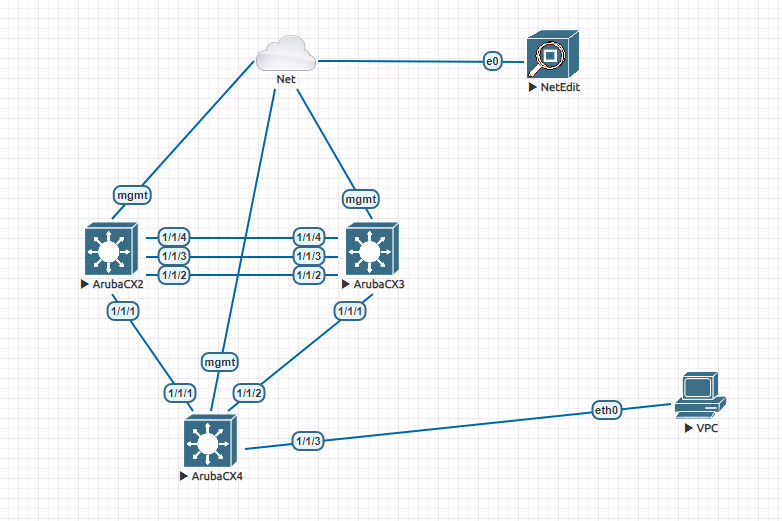

source is a vPC in Eve-Ng with ip 10.1.14.100/24 DGW: 10.1.14.1
CX2 VSX CORE switchCX2# show vsx status
VSX Operational State
---------------------
ISL channel : In-Sync
ISL mgmt channel : operational
Config Sync Status : in-sync
NAE : peer_reachable
HTTPS Server : peer_reachable
Attribute Local Peer
------------ -------- --------
ISL link lag10 lag10
ISL version 2 2
System MAC 00:00:00:ab:cd:01 00:00:00:ab:cd:01
Platform X86-64 X86-64
Software Version Virtual.10.04.3000 Virtual.10.04.3000
Device Role primary secondary
CX2# show lacp interfaces
State abbreviations :
A - Active P - Passive F - Aggregable I - Individual
S - Short-timeout L - Long-timeout N - InSync O - OutofSync
C - Collecting D - Distributing
X - State m/c expired E - Default neighbor state
Actor details of all interfaces:
------------------------------------------------------------------------------
Intf Aggr Port Port State System-ID System Aggr Forwarding
Name Id Pri Pri Key State
------------------------------------------------------------------------------
1/1/4 lag10 5 1 ASFNCD 08:00:09:be:8f:9d 65534 10 up
1/1/1 lag12(mc) 1 1 ASFNCD 00:00:00:ab:cd:01 65534 12 up
Partner details of all interfaces:
------------------------------------------------------------------------------
Intf Aggr Port Port State System-ID System Aggr
Name Id Pri Pri Key
------------------------------------------------------------------------------
1/1/4 lag10 5 1 ASFNCD 08:00:09:c3:08:62 65534 10
1/1/1 lag12(mc) 2 1 ASFNCD 08:00:09:ea:25:e5 65534 11
CX2# show vlan
--------------------------------------------------------------------------------------------------------------
VLAN Name Status Reason Type Interfaces
--------------------------------------------------------------------------------------------------------------
1 DEFAULT_VLAN_1 up ok default lag10,lag12
14 VLAN14 up ok static lag10,lag12
CX2# show mac-address-table
MAC age-time : 300 seconds
Number of MAC addresses : 4
MAC Address VLAN Type Port
--------------------------------------------------------------
08:00:09:ea:25:e5 1 dynamic lag12
08:00:09:c3:08:62 1 dynamic lag10
00:50:79:66:68:05 14 dynamic lag12
08:00:09:c3:08:62 14 dynamic lag10
CX2# show arp
IPv4 Address MAC Port Physical Port State
---------------------------------------------------------------------------
10.1.14.100 00:50:79:66:68:05 vlan14 lag12 reachable
Total Number Of ARP Entries Listed- 1.
-------------------------------------------------------------------------------
CX2#
CX3 - VSX core SwitchCX3# show vsx status
VSX Operational State
---------------------
ISL channel : In-Sync
ISL mgmt channel : operational
Config Sync Status : in-sync
NAE : peer_reachable
HTTPS Server : peer_reachable
Attribute Local Peer
------------ -------- --------
ISL link lag10 lag10
ISL version 2 2
System MAC 00:00:00:ab:cd:01 00:00:00:ab:cd:01
Platform X86-64 X86-64
Software Version Virtual.10.04.3000 Virtual.10.04.3000
Device Role secondary primary
CX3# show lacp interfaces
State abbreviations :
A - Active P - Passive F - Aggregable I - Individual
S - Short-timeout L - Long-timeout N - InSync O - OutofSync
C - Collecting D - Distributing
X - State m/c expired E - Default neighbor state
Actor details of all interfaces:
------------------------------------------------------------------------------
Intf Aggr Port Port State System-ID System Aggr Forwarding
Name Id Pri Pri Key State
------------------------------------------------------------------------------
1/1/4 lag10 5 1 ASFNCD 08:00:09:c3:08:62 65534 10 up
1/1/1 lag12(mc) 1001 1 ASFNCD 00:00:00:ab:cd:01 65534 12 up
Partner details of all interfaces:
------------------------------------------------------------------------------
Intf Aggr Port Port State System-ID System Aggr
Name Id Pri Pri Key
------------------------------------------------------------------------------
1/1/4 lag10 5 1 ASFNCD 08:00:09:be:8f:9d 65534 10
1/1/1 lag12(mc) 3 1 ASFNCD 08:00:09:ea:25:e5 65534 11
CX3# show vlan
--------------------------------------------------------------------------------------------------------------
VLAN Name Status Reason Type Interfaces
--------------------------------------------------------------------------------------------------------------
1 DEFAULT_VLAN_1 up ok default lag10,lag12
14 VLAN14 up ok static lag10,lag12
CX3#
CX3# show mac-address-table
MAC age-time : 300 seconds
Number of MAC addresses : 4
MAC Address VLAN Type Port
--------------------------------------------------------------
08:00:09:ea:25:e5 1 dynamic lag12
08:00:09:be:8f:9d 1 dynamic lag10
00:50:79:66:68:05 14 dynamic lag12
08:00:09:be:8f:9d 14 dynamic lag10
CX3# show arp
IPv4 Address MAC Port Physical Port State
---------------------------------------------------------------------------
10.1.14.100 00:50:79:66:68:05 vlan14 lag12 reachable
Total Number Of ARP Entries Listed- 1.
-------------------------------------------------------------------------------
CX3#
CX 4 - Access switchCX4# show lacp interfaces
State abbreviations :
A - Active P - Passive F - Aggregable I - Individual
S - Short-timeout L - Long-timeout N - InSync O - OutofSync
C - Collecting D - Distributing
X - State m/c expired E - Default neighbor state
Actor details of all interfaces:
------------------------------------------------------------------------------
Intf Aggr Port Port State System-ID System Aggr Forwarding
Name Id Pri Pri Key State
------------------------------------------------------------------------------
1/1/1 lag11 2 1 ASFNCD 08:00:09:ea:25:e5 65534 11 up
1/1/2 lag11 3 1 ASFNCD 08:00:09:ea:25:e5 65534 11 up
Partner details of all interfaces:
------------------------------------------------------------------------------
Intf Aggr Port Port State System-ID System Aggr
Name Id Pri Pri Key
------------------------------------------------------------------------------
1/1/1 lag11 1 1 ASFNCD 00:00:00:ab:cd:01 65534 12
1/1/2 lag11 1001 1 ASFNCD 00:00:00:ab:cd:01 65534 12
CX4# show vlan
--------------------------------------------------------------------------------------------------------------
VLAN Name Status Reason Type Interfaces
--------------------------------------------------------------------------------------------------------------
1 DEFAULT_VLAN_1 up ok default lag11
14 VLAN14 up ok static 1/1/3-1/1/4,lag11
CX4#
CX4# show mac-address-table
MAC age-time : 300 seconds
Number of MAC addresses : 6
MAC Address VLAN Type Port
--------------------------------------------------------------
08:00:09:c3:08:62 1 dynamic lag11
08:00:09:be:8f:9d 1 dynamic lag11
08:00:09:c3:08:62 14 dynamic lag11
08:00:09:be:8f:9d 14 dynamic lag11
00:00:00:00:10:fe 14 dynamic lag11
00:50:79:66:68:05 14 dynamic 1/1/3
CX4# show arp
No ARP entries found.
CX4#
------------------------------
Dale Joyce
------------------------------
Original Message:
Sent: Feb 02, 2021 05:08 AM
From: Vincent Giles
Subject: ArubaCX VSX
Please share:
show vsx status
show lacp int m
show vlan
What is the source ip and destination IP for ping ?
Where is connected the source ?
------------------------------
Vincent Giles
Original Message:
Sent: Jan 30, 2021 11:21 AM
From: Dale Joyce
Subject: ArubaCX VSX
Hi All,
This hopefully is very basic and my error.
I have 2 CX Virtual devices my lab and trying to configure VSX before i implement for a customer. I have configured 2 x switches as a VSX pair with VLAN 10 SVI and active gateways. I have then tried to configure another switch with a lag to the VSX pair and cannot get any pings across. the configs of the switches are below, any help would be appreciated.
Thanks
Dale
CONFIGS
VSX1
ArubaCX6(config)# show run
Current configuration:
!
!Version ArubaOS-CX Virtual.10.04.3000
!export-password: default
hostname ArubaCX6
user admin group administrators password ciphertext AQBapV0PtzAhx3DZtjx7M6JK40vQ16gKWBG9auwCb3urLahnYgAAABdSg4I4DI12tq6jiYyOyuUM4j61fcBHpdjcHyY4hCGIelmKhWy1SCX3rwTDufEWuGTQbHDOQyc8UAyqJHpKi14Segevtwnj+7F2Keh8qGlGeEj+ibt/xW9l2lQn7MKLDRDL
led locator on
vrf keepalive
!
!
!
!
ssh server vrf mgmt
!
!
!
!
!
vlan 1,10
interface mgmt
no shutdown
ip dhcp
interface lag 10
no shutdown
no routing
vlan trunk native 1 tag
vlan trunk allowed all
lacp mode active
lacp rate fast
interface lag 12 multi-chassis
no shutdown
description To-VSF
no routing
vlan trunk native 1
vlan trunk allowed all
lacp mode active
lacp rate fast
interface 1/1/1
no shutdown
interface 1/1/2
no shutdown
lag 12
interface 1/1/3
no shutdown
interface 1/1/4
no shutdown
vrf attach keepalive
ip address 10.1.18.41/30
interface 1/1/5
no shutdown
lag 10
interface 1/1/6
no shutdown
lag 10
interface 1/1/7
no shutdown
interface 1/1/8
no shutdown
interface 1/1/9
no shutdown
interface vlan10
ip address 10.0.10.2/24
active-gateway ip mac 00:00:00:00:10:fe
active-gateway ip 10.0.10.1
l3-counters
vsx
system-mac 00:00:00:ab:cd:01
inter-switch-link lag 10
role primary
keepalive peer 10.1.18.42 source 10.1.18.41 vrf keepalive
https-server vrf mgmt
VSX2
Current configuration:
!
!Version ArubaOS-CX Virtual.10.04.3000
!export-password: default
hostname ArubaCX5
user admin group administrators password ciphertext AQBapf7slPngEh46m7DHHRE3GBubqovV5nEiT5EVI7ATW0XnYgAAACFoSgaRgy9WSE+06JmdyOXv9hyL0YJC7IGn0xVONkH2QkZHlJ5x7nWugjds9I71ePu5N2OvXx7iK+Db+UP77dwVSBwDmKsdz65kU17SECnLo9NPzoIbqEENT1l7IUV21UQ3
led locator on
vrf keepalive
!
!
!
!
ssh server vrf mgmt
!
!
!
!
!
vlan 1,10
interface mgmt
no shutdown
ip dhcp
interface lag 10
no shutdown
no routing
vlan trunk native 1 tag
vlan trunk allowed all
lacp mode active
lacp rate fast
interface lag 12 multi-chassis
no shutdown
description To-VSF
no routing
vlan trunk native 1
vlan trunk allowed all
lacp mode active
lacp rate fast
interface 1/1/2
no shutdown
lag 12
interface 1/1/4
no shutdown
vrf attach keepalive
ip address 10.1.18.42/30
interface 1/1/5
no shutdown
lag 10
interface 1/1/6
no shutdown
lag 10
interface vlan10
ip address 10.0.10.3/24
active-gateway ip mac 00:00:00:00:10:fe
active-gateway ip 10.1.10.1
l3-counters
vsx
system-mac 00:00:00:ab:cd:01
inter-switch-link lag 10
role secondary
keepalive peer 10.1.18.41 source 10.1.18.42 vrf keepalive
https-server vrf mgmt
ACCESS Switch
Current configuration:
!
!Version ArubaOS-CX Virtual.10.04.3000
!export-password: default
hostname ArubaCX7
user admin group administrators password ciphertext AQBapf9QegE3kKy25oNfKl1esnqRTEyeUfG+eF4w9taXzwZxYgAAAAaHw6LubVHE88ARakqhbkyRgGg119IHuz2tBpNnQMPWKjB1iDv+uKJOO4rlUwuNUEMLKFFxseD+jncz+/N5vIAjMHpkGZM/f5VQRJgKRBvhdR4fHxOilfgf+rSrf+nNx4mi
led locator on
!
!
!
!
ssh server vrf mgmt
!
!
!
!
!
vlan 1,10
interface mgmt
no shutdown
ip dhcp
interface lag 122
no shutdown
description To-Distribution
no routing
vlan trunk native 1
vlan trunk allowed 1,10
lacp mode active
lacp rate fast
interface 1/1/1
no shutdown
no routing
vlan trunk native 1
vlan trunk allowed 1,10
interface 1/1/2
no shutdown
no routing
vlan trunk native 1
vlan trunk allowed 1,10
interface 1/1/5
no shutdown
lag 122
interface 1/1/6
no shutdown
lag 122
https-server vrf mgmt
------------------------------
Dale
------------------------------
