Network Management

Hello team,

Can you explain to me how configure snmpv3 between en Aruba switch (S.15.09.0029) and IMC (version PLAT 7.3 E0705P10) step by step please ?

I tried with these command but it doesn't work :

snmpv3 enable

snmpv3 group managerpriv user "imc" sec-model ver3

snmpv3 targetaddress "traphost.L@p!MC27.10.124.86.133" params

"traphost.L@p!MC27.10.124.86.133" 10.124.86.133 taglist "TrapHost"

snmpv3 params "traphost.L@p!MC27.10.124.86.133" user "L@p!MC27" sec-model ver2c

message-processing ver2c

snmpv3 user "imc"

snmpv3 user "initial"

Thanks in advance

Hi @jrandriam

You may try the below example.

Switch:

snmpv3 enable
snmpv3 user swsnmpv3user auth sha authenticationpassword priv aes encryptionpassword
snmpv3 group managerpriv user swsnmpv3user sec-model ver3

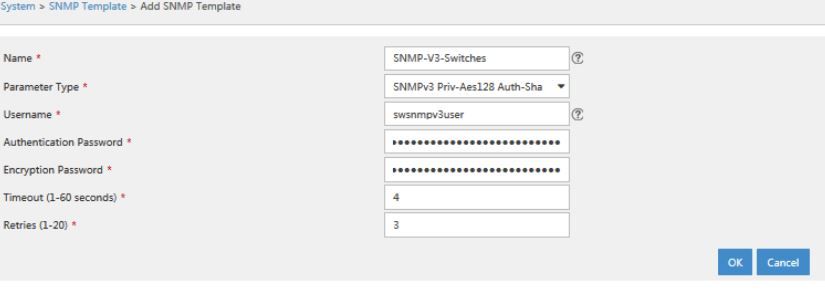

IMC

Make sure the authentication password and encryption password are matching with the switch.
