Hello Airheads community
I want to share an automation demo applied to AOS-CX switches: take network backups and save these backups in a reliable and secure place. With this demo, you can show to customers and prospects automation capabilities of AOS-CX and how much time can be saved by automating repetitive tasks.

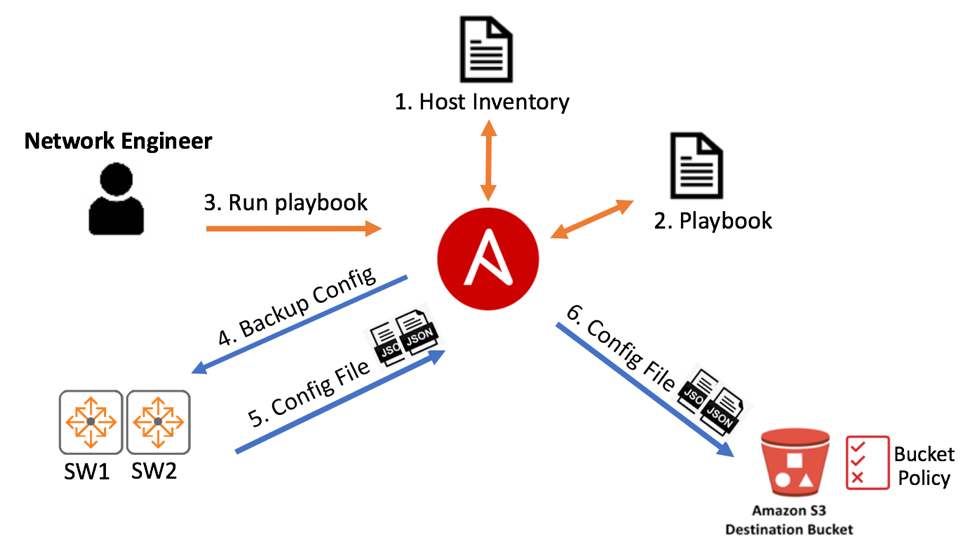

Proposed automation workflow is as follows (Figure 1):
Figure 1
Workflow steps:
1. Host Inventory file with management IP addresses of AOS-CX switches.
2. Playbook file with two tasks:
2A. Take config backup of AOS-CX switch.
2B. Synch the backup folder with a bucket in AWS S3.
3. Run the playbook.
4. Ansible communicates with the AOS-CX switches that are part of the Host Inventory file, saves the configurations in a local folder and finally synchronizes the folder with a bucket in S3.
Video of the demo:
How to setup the demo:

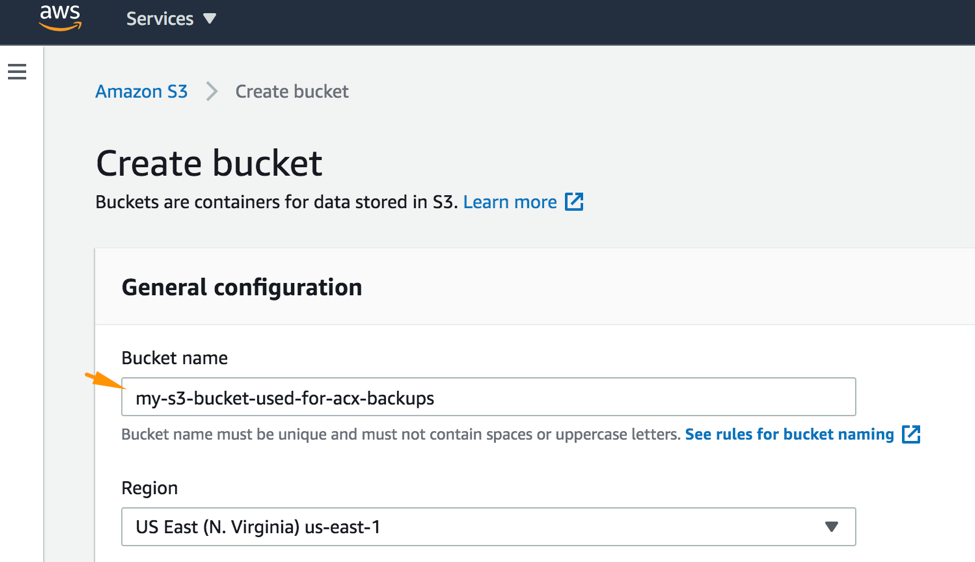

1. Create a Bucket:

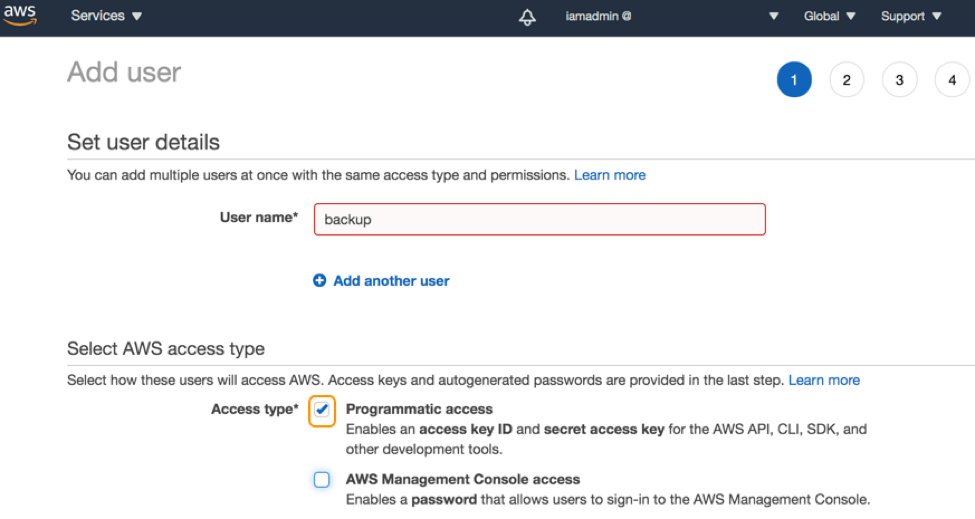

2. Create an AMI User, Access type set to "programmatic access":

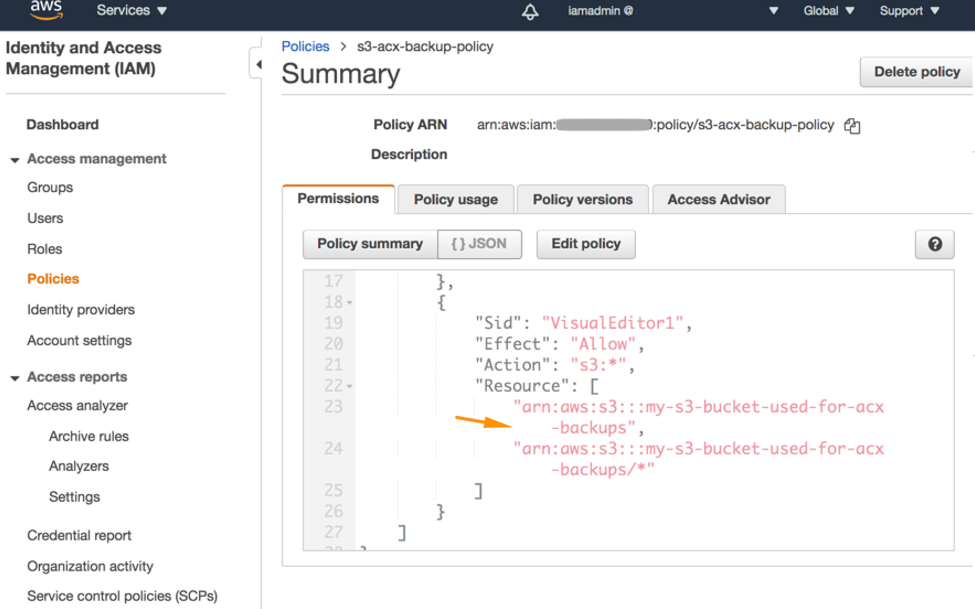

3. Attach a policy to the AMI User in order to allow access to the S3 bucket:
4. "aoscx_backup_config" en arubanetworks.aoscx ansible collection:
https://galaxy.ansible.com/arubanetworks/aoscx
5. "s3_sync" en community.aws ansible collection:
https://docs.ansible.com/ansible/latest/collections/community/aws/s3_sync_module.html
6. Set the ansible_python_interpreter value; Ansible tries to use Python 2 (/usr/bin/python) by default. Details:
https://blog.networktocode.com/post/Ansible-Required-Library/
Code attached.
Regards,
Adolfo
------------------------------
Adolfo Bolivar
------------------------------
