IMC device monitoring for ArubaOS/ArubaOS-CX stacked switches

This thread has been viewed 9 times
  • 1.  IMC device monitoring for ArubaOS/ArubaOS-CX stacked switches

    Posted May 30, 2025 04:55 AM

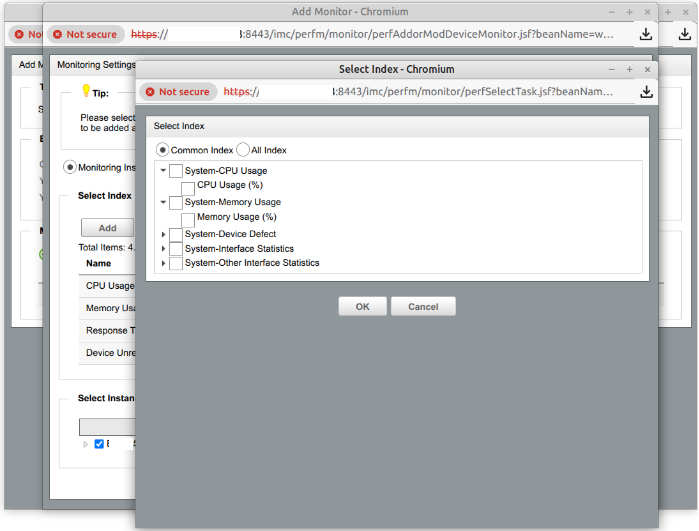

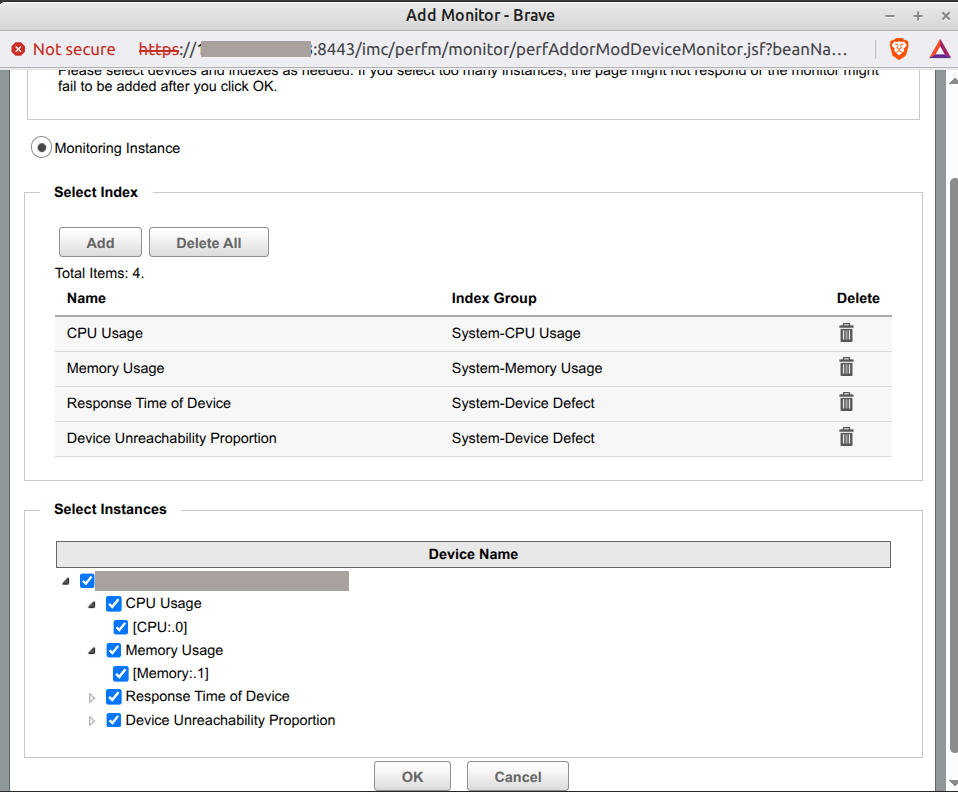

    Hello there. On IMC, when a switch Aruba (AOS or AOS-CX doesn't care) is stacked, the only "Device Monitoring"

    index (eg for Real-Time monitoring) you can select is the Commander/Conductor switch.

    For the other chassis in the stack I'm not able to monitor CPU and/or RAM.

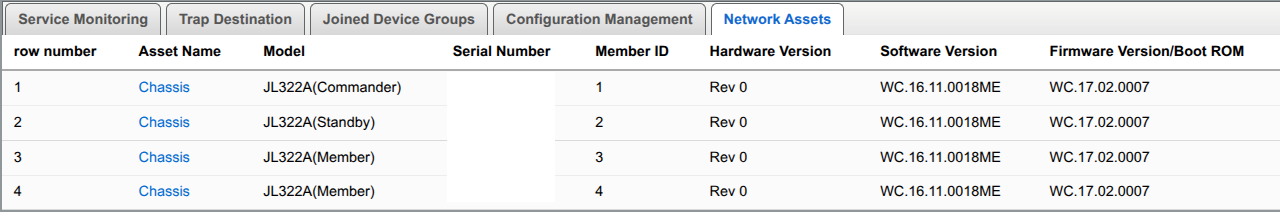

     IMC, anyway, recognize and manage them. Looking inside the "Network Assets" tab the entire stack components is shown.

     I also tried to load other SNMP MIB's into IMC (ARUBACX-STACK-MIB, ARUBAWIRED-VSFv2-MIB.. etc) but that's made no difference.

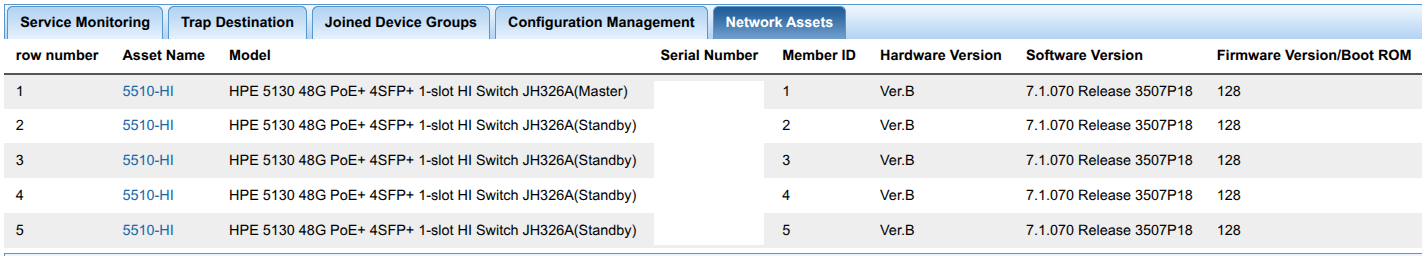

    This behaviour is different with Comware switches stacked, inside the "Network Assets" all the chassis are shown the same

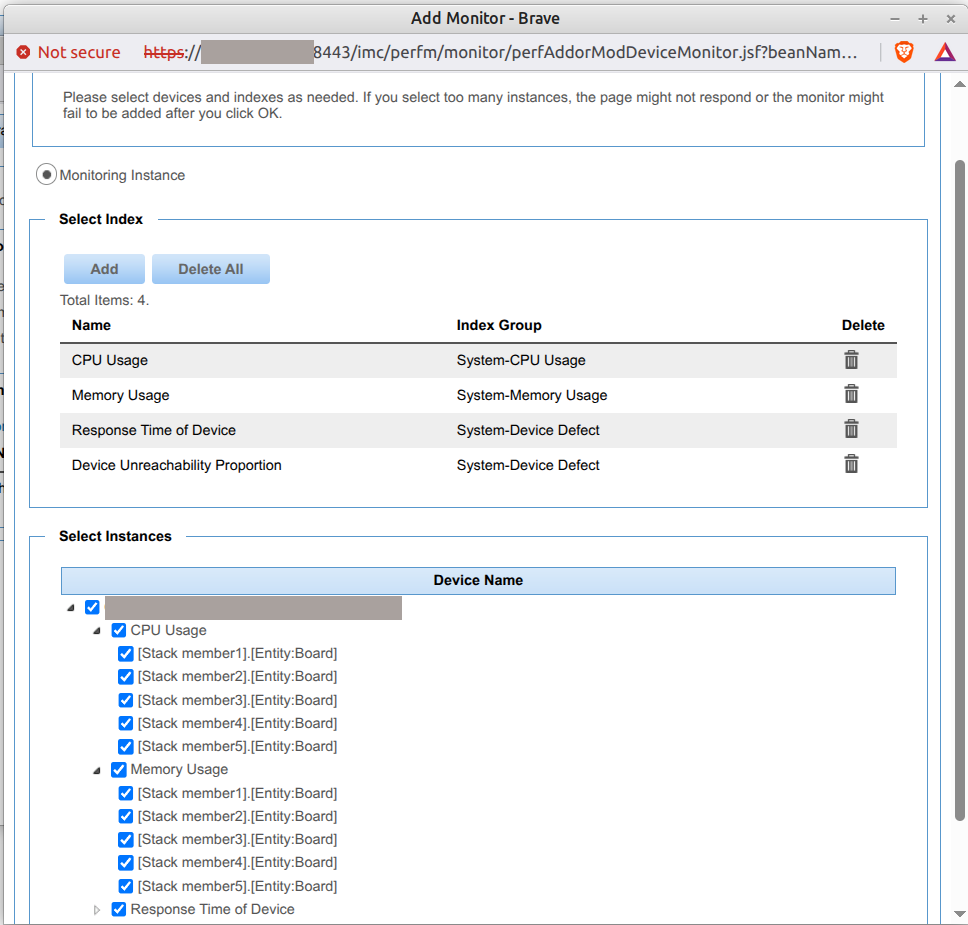

     But with them it's also possible to choose one specific chassis monitoring.

     IMC is running version E0710P04

     Does anybody have a tip that could help ? For sure I'm not the only one having this need..

     Thank you

     Luigi
