Aruba 3810M Switch Series - LED Indicators

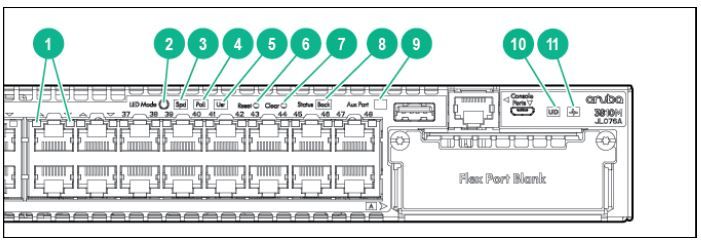

Switch and port LEDs on front of the switches

  • Front of Switch Status and Mode LED Behavior describes the switch chassis and Flex Port status LEDs and also the Switch Mode LEDs.
  • Below table describes the switch Port LEDs and their different mode behaviors.

Label

Description

1

Switch Port LEDs

2

LED Mode button

3

Speed LED

4

PoE LED

5

Usr LED

6

Reset button

7

Clear button

8

Back Module status LED

9

Aux Port status LED

10

Unit Identification LED

11

Global status LED

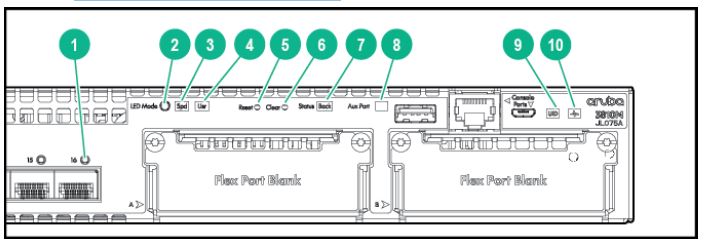

Switch and port LEDs for JL075A

Switch and Port LEDs Label and Description for JL075A

Label

Description

1

Switch Port LEDs

2

LED Mode button

3

Speed LED

4

Usr LED

5

Reset button

6

Clear button

7

Back Module status LED

8

Aux Port status LED

9

Unit Identification LED

10

Global status LED

Front of switch status and mode LED behavior

Switch LEDs

Function

State

Meaning



Internal Power Status ofthe switch.

On Green

The Switch has passed self-test and is powered up normally.

Slow Flash Green

The switch self-test and initialization are in progress Status after the switch has been power cycled or reset. The switch isnot operational until thisThe switch self-test and initialization are in progress Switch/Port Fault Status after the switch has been power cycled or reset. The switch isnot operational until this LED stops blinking green.

LEDs tops blinking green.

Self-Test Status Switch/Port Fault Status

Slow Flash Orange

The switch self-test and initialization are in progress Switch/Port Fault Status after the switch has been power cycled or reset. The switch is not operational until this LED stops blinking green.

On Orange

If this LED is on orange for a prolonged time, the switch has On Orange encountered a fatal hardware failure, or has failed its self-test

Off

The unit is not receiving power.

UID (Unit Identification)

The Unit Identification LED is used to help you to UID (Unit Identification) The default is 30 minutes.a rack or collection of products.

On or Slow Flash

The “chassis locate” command allows you to blink or turn on the LED for a specified number of minutes (1-1440). The default is 30 minutes.

Off

LED will turn off after the timeout period has expired.

Back Module Status

Status of modular components installed in the back of the unit.

On Green

Normal operation: All modular components installed in the back of the unit are functioning correctly.

Slow Flash Orange

One of the modules inserted from the back of the chassis of stacking module) has failed self test or is experiencing a fault condition. Flashes simultaneously with the Global Status LED flashing orange.

Aux Port Activity

Indicates data transfer on Solid Green the Aux Port which is used for processing a downloading switch software code.

Solid Green

USB installed and successfully initialized, and mounted, but no data transfer.

Green Flicker

Data transfer is in progress. Do not remove installed device until data transfer is complete

Slow Flash Orange

The USB device that is installed is unsupported or faulted.

Off

No USB installed.

Flex Port Module Status

Status of Flex Port module.

On Green

Flex Port module operating correctly.

Slow Flash Orange

Flex Port module has experienced a fault.The Global Status LED should be flashing synchronously.

Off

No power.

No Present

No Module

Speed Mode Selected

Indicates when the Port LEDs are showing port speed information.

On

Speed Mode is selected. Port LEDs indicate port speed.

Off

Speed mode not selected.

Power over Ethernet (PoE)Mode Selected

Indicates when the Port LEDs are showing PoE status information.

On Green

PoE Mode is selected. Port LEDs show PoE information.

On Orange

PoE Mode is selected and aport also has a PoE error. The Global Status LED and the LED corresponding to the port with the error will be flashing orange.The rest of the Port LEDs will display normal PoE status.

Slow Flash Orange

PoE Mode has NOT been selected and a port has a PoE error. LED will be flashing orange simultaneously with the Global Status LED and the LED corresponding to the port with the error. The rest of the Port LEDs will display normal PoE status.

Save Power Mode Selected

This mode is indicated by ALL the switch indicator LEDs being off, except for the Global Status LED. This displaySave Power Mode Selected occurs only if the switch has been configured with the save power led command.

top

Port LEDs and mode behavior

Switch LEDs

Function

State/Mode

Meaning

Port LEDs

To display the information Activity/Link for the port as selected by the LED Mode select button.

Activity/Link

Shows port Activity and Link status.

This is the DEFAULT. There is no dedicated mode LED indicating this mode.

The Mode LED function the last press of the LED Mode button.

Speed

Shows port speed configuration.

PoE

Shows PoE information.

User

Shows User selectable User behavior.

Activity/Link Mode Selected

Port LEDs are displaying Link status and network activity information simultaneously.

Activity/Link Mode is the default mode and is in effect the unless another LED mode has been selected.

Half-Bright Green

The port is enabled and receiving a Link indication from the connected device.

Activity Flicker Green

The percentage of time that the LED is full-bright is roughly proportional to the percentage of full bandwidth utilization of the port.

Half-Bright Green port Link indication remains on as Activity flickers from half-bright to full-bright.

Slow Flash Orange

The corresponding port has failed its self-test. Flashes simultaneously with the Global Status LED flashing orange.

Off

The Port is disabled, not connected, or not receiving link.

Speed Mode Selected

Port LEDs are displaying the connection speed at which each port is operating.

Fast Flash Green

The port is operating at 40 Gbps.

On Green

The port is operating at 10 Gbps.

Triple Blink Green

The port is operating at 5 Gbps. (HPE SMART RATE ports only)

Double Blink Green

The port is operating at 2.5Gbps. (HPE SMART RATE ports only)

Slow Flash Green

The port is operating at 1 Gbps.

PoE Mode Selected

Port LEDs are displaying PoE information.

On Green

The port is providing PoE power.

On Orange

PoE is disabled on the port.

Fast Flash Orange

The port is denied power or is detecting an external PD fault.

Slow Flash Orange

The port has an internal hardware failure. Flashes simultaneously with the Global Status LED flashing orange.

Off

The port is not providing PoE power.

User Mode Selected

Mode currently active onlyin stacked configurations.

On Green

Stack Member exists in the stack and is operational.

Slow Flash Green

Indicates the Member # of the chassis.

Fast Flash Green

Indicates the Member # of the Commander of the stack.

On Orange

Stack Member is currently booting or has a fault that is preventing it from communicating.

Slow Flash Orange

Stack Member is in a known fault condition (i.e. Fan fault,PSU fault, etc.). The Global Status LED on all stack members will also Slow Flash Orange.

Off

Stack Member does not exist in the stack configuration.
