Issue Server Reject with cloudauth in aruba central with AD Azure

This thread has been viewed 21 times
  • 1.  Issue Server Reject with cloudauth in aruba central with AD Azure

    Posted May 06, 2022 06:32 PM
    Dear Community.

    I have the following case with the central Aruba cloudauth integrated with the Active Directory in Azure.

    In the authentication and access process, the rad-recj, eap-failure, and server failure messages are observed.



    Auth Trace Buffer
    -----------------


    May 5 10:55:34 eap-failure <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 8 4 server rejected
    May 5 10:55:35 station-up * e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 - - wpa2 aes
    May 5 10:55:35 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 10 5
    May 5 10:55:35 eap-start -> e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 - -
    May 5 10:55:35 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 10 5
    May 5 10:55:40 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 10 5
    May 5 10:55:41 eap-id-resp -> e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 10 21 jampier.valdivia
    May 5 10:55:41 rad-req -> e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 1 345 a9e560f3-537e-4206-8bda-0baa7ba5
    May 5 10:55:41 rad-resp <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71/AS1_#guest#_ 1 -
    May 5 10:55:41 eap-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 11 6
    May 5 10:55:41 eap-nak -> e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 11 7
    May 5 10:55:41 rad-req -> e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71/AS1_#guest#_ 1 349 a9e560f3-537e-4206-8bda-0baa7ba5
    May 5 10:55:41 rad-reject <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71/AS1_#guest#_ 1 -
    May 5 10:55:41 eap-failure <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 11 4 server rejected
    May 5 10:56:12 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 12 5
    May 5 10:56:17 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 13 5
    May 5 10:56:22 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 13 5
    May 5 10:56:27 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 13 5
    May 5 10:56:32 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 14 5
    May 5 10:56:37 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 14 5
    May 5 10:56:42 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 14 5
    May 5 10:56:47 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 15 5
    May 5 10:56:52 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 15 5
    May 5 10:56:57 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 15 5
    May 5 10:57:03 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 16 5
    May 5 10:57:08 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 16 5
    May 5 10:57:13 eap-id-req <- e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 16 5
    May 5 10:57:18 dot1x-timeout * e4:a4:71:e4:1b:a0 6c:c4:9f:25:6d:71 17 512 station timeout
    6c:c4:9f:ca:56:d6#

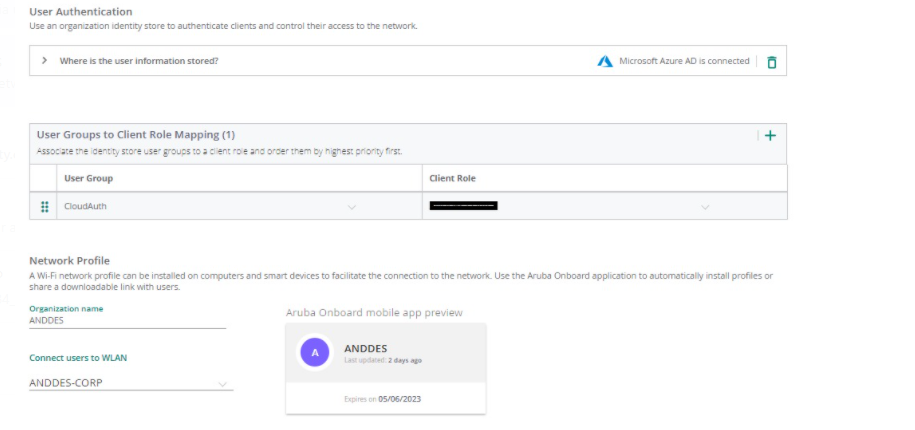

    In the configuration process, the guides and recommendations were followed step by step, not encountering problems, and observing the correct one.
    operation in central Aruba with AD connection.





    The problem occurs with users who try to access the wireless network, through the cloudauth method.

    Please help me this case.

    Thanks

    Felipe H.V


    ------------------------------
    Felipe Herrera
    ------------------------------


  • 2.  RE: Issue Server Reject with cloudauth in aruba central with AD Azure

    EMPLOYEE
    Posted May 10, 2022 07:25 AM
    What is most likely is that your user is not in the right Azure AD group that you selected. You could check the authentication logs (Global View, Security, Authentication and Policy, List view) and check the authentication log there for a reason that the authentication was rejected.

    ------------------------------
    Herman Robers
    ------------------------
    If you have urgent issues, always contact your Aruba partner, distributor, or Aruba TAC Support. Check https://www.arubanetworks.com/support-services/contact-support/ for how to contact Aruba TAC. Any opinions expressed here are solely my own and not necessarily that of Hewlett Packard Enterprise or Aruba Networks.

    In case your problem is solved, please invest the time to post a follow-up with the information on how you solved it. Others can benefit from that.
    ------------------------------



  • 3.  RE: Issue Server Reject with cloudauth in aruba central with AD Azure

    Posted May 24, 2022 01:55 AM
    Hi Felipe,
    I’ve been attempting to configure this as well, mostly by trial and error. I can find very little in the way of documentation or guides. Any links are greatly appreciated?
    Lyle

    ---------------------------------
    Lyle Lee
    ---------------------------------





  • 4.  RE: Issue Server Reject with cloudauth in aruba central with AD Azure

    Posted 29 days ago
    For the connection of the final client with the Azure cloud, it is necessary to use the Aruba Onboard Application for the connection with a certificate.

    Below is the link:

    https://www.arubanetworks.com/techdocs/central/latest/content/nms/policy/prov-mobile-app.htm


    ------------------------------
    Fernando Ramos Huayhua
    ------------------------------
